SL300
Motorola

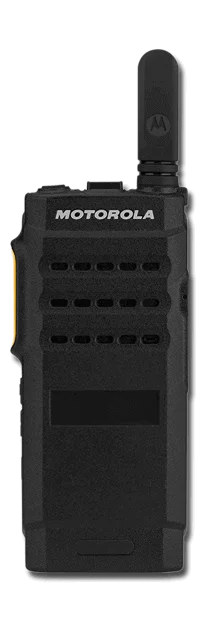

MOTOTRBO™ SL300 portable radio provides reliable push-to-talk communication for the mobile, everyday user in an ultra-slim and rugged profile.
Whether you're working in the field or at a black-tie event, the SL300 is boldly designed to keep you efficiently connected. Measuring under an inch thick, the SL300 is ultra-portable with a stubby antenna, curved edges, and a rugged frame. It features an Active View display with a matrix of LED lights behind the radio housing and “Range Max” technology, an advanced radio design, and a patented antenna for enhanced range. Designed for easy and intuitive use and outfitted with the latest technology, the SL300 is the perfect work partner.
Radios include:
SL300 Active View Display
SL300 Non-Display
Frequency Band:
VHF, UHF
Frequency Range:
VHF - 136 - 174 MHz;
UHF - 403 - 470 MHz
Power Output:
1, 2, 3, Watt
Number of Channels/Groups/Zones:
99 Channels
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
Analog (hours) - 12.5 (VHF Non-Display), 11.8 (VHF Display); 12.5 (UHF Non-Display), 11.8 (UHF Display)
Digital - 15 (VHF Non-Display), 14 (VHF Digital); 15 (UHF Non-Display), 14 (UHF Display)
Dimensions H x W x D (with standard battery)
4.95 X 2.17 x 0.87 in (125.7 X 55.0 X 22.0 mm)
Weight (with standard battery)
VHF: 5.96 oz (168.9 g), UHF: 5.84 oz (165.6 g)
Display
No Display, Active View
Operating temperature
-22 F to 140 F (-30 C to +60 C)
Mil spec
810 D 810 E
IP Standards
IP54
Key features
- Supports digital and analog communications
- UHF, VHF
- 2 channels (non-display) / 99 channels (display)
- 1.0 – 3.0 Watts Output Power
- Built to last: MIL-STD 810 & IP54-Rated Durability
- Analog/Digital Operation
- Designed for easy, intuitive use
Slim and stylish, for the customer service user who needs intuitive technology
Measuring under an inch thick, the SL300 is ultra-portable. A stubby antenna, curved edges and rugged frame make the SL300 the perfect work partner. It can be easily carried in pockets and purses without snagging or bulging.
Active View Display – optional (SL300 display model)
Shatterproof Active View display uses hidden LED lighting to communicate channel, radio, and volume information crisply in both daytime and nighttime situations.
Connect to intuitive technology with this slim, lightweight radio. An eye-catching Active View display combines ruggedness with simplicity, and patented Range Max technology delivers great coverage with long battery life in a small, convenient outline. The radio supports analog and digital modes and is complemented by a range of innovative accessories.
Popular with these industries:
- Education
- Hospitality
- Property Management
- Retail
- Security
Spec Sheets
Communications are Evolving: Next-Generation MOTOTRBO Two-way Radios
From the production line to the power line, MOTOTRBO radios are helping people work more efficiently, productively and safely. MOTOTRBO delivers game-changing advantages along with business-essential systems, applications and accessories.
Antenna
 | 32012144001-N Gray Antenna ID Band (pack of 10) |
 | 32012144002-N Yellow Antenna ID Band (pack of 10) |
 | 32012144003-N Green Antenna ID Band (pack of 10) |
 | 32012144004-N Blue Antenna ID Band (pack of 10) |
 | 32012144005-N Purple Antenna ID Band (pack of 10) |
 | PMAD4144 VHF STUBBY ANT (136-144MHz) 5cm |
 | PMAD4145 VHF STUBBY ANT (144-156MHz) 5cm |
 | PMAD4146 VHF STUBBY ANT (156-174MHz) 5cm |
 | PMAE4093 UHF STUBBY ANT (403-425MHz) 4.5cm |
 | PMAE4094 UHF STUBBY ANT (420-445MHz) 4.5cm |
 | PMAE4095 UHF STUBBY ANT (435-470MHz) 4.5cm |
Batteries
 | PMLN7074 Battery Door Cover |
Carry Accessories
 | PMLN6074 Nylon Wrist Straps |
 | PMLN7076 Flexible Hand Strap |
 | PMLN7128 Belt Clip (Heavy-Duty) |
 | PMLN7190 Swivel Carry Holster |
Chargers
 | 25009298001 Micro-USB Charger, Switch Mode, Low Noise, 5W, US/NA |
 | PMLN7109 Standard Single-Unit Charger, US/NA |
 | PMLN8569-N CHGR DESKTOP MULTI |
Earpieces
 | 5080384F72-N Replacement Foam Plugs for RLN5887 and RLN6242. Noise reduction = 25dB (Pack of 50 pairs) |
 | PMLN7156 Earbud w/ In-Line PTT, Mag One |
 | PMLN7157 2-Wire Surveillance Kit with Translucent Tube, Black |
 | PMLN7158 1-Wire Surveillance Kit with Translucent Tube, Black |
 | PMLN7159 Adjustable D-Style Earpiece w/ In-Line PTT/Mic, Black |
 | PMLN7189 Swivel Earpiece, In-Line Mic & PTT |
| RLN6242-N Low Noise Kit with Quick Disconnect translucent tube and clear rubber eartip |
The Motorola SL300 Series is available in the following models.
SL300 Active View Display
- AAH88JCP9JA2AN 136 - 174 MHz VHF, 1-3 Watts with Range Max Technology, 99 Channels
- AAH88QCP9JA2AN 403 - 470 MHz UHF, 1-3 Watts with Range Max Technology, 99 Channels
SL300 Non-Display
- AAH88JCC9JA2AN 136 - 174 MHz VHF, 1-3 Watts with Range Max Technology, 2 Channels
- AAH88QCC9JA2AN 403 - 470 MHz UHF, 1-3 Watts with Range Max Technology, 2 Channels
